7700 ION

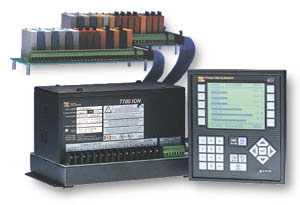

7700 ION Power Meter3-Phase Power Meter, Analyzer and Controller

For use by industrial sites, commercial facilities, utilities, power marketers, and energy service companies, the 7700 ION offers incredible flexibility and functionality.

It combines high-accuracy, revenue certified power and energy measurements, plus an extensive variety of I/O combinations for universal metering. Detailed power quality analysis features keep you informed about your power distribution system.

Integrate the meter with our PEGASYS® software or other energy management and SCADA systems through multiple communication channels and protocols.

Applications Summary

Power Quality Analysis
Discover the sources of power quality events, harmonics, and voltage sags/swells. Analyze problems and avoid repeat interruptions.

Cost Allocation & Billing
Determine cost centers, identify opportunities for demand control and check energy consumption patterns. Use comprehensve multi-year scheduling and time-of-use activity profiles.

Demand & Power Factor Control
Avoid penalties with automated load shedding, scheduling, peak shaving or capacitor bank control.

Load Studies & Circuit Optimization
Determine the capacity of your electric network and run at peak efficiency. Perform load trending.

Equipment Monitoring & Control
Improve process yields and extend equipment life. Meter all your utilities including gas, steam, water and more.

Preventative Maintenance
Set up alarms to warn of pending problems. Log events and alarms for all critical conditions.

Features Summary

Measurements

  • Revenue certified
  • Instantaneous voltage, current, frequency, power factor
  • Energy: bi-directional, absolute, net.
  • Demand: sliding window, predicted, thermal
  • Harmonics: individual & total harmonic distortion up to the 63rd
  • Sag/swell recording

Communications

  • Optional built-in modem with ModemGate™ to allow modem access for 31 other devices
  • Optional 10Base-T or 10Base-FL Ethernet port with EtherGate™ for direct data transfer from Ethernet to RS-485
  • Modbus™ RTU and DNP 3.0 protocol support

On-Board Data Logging

  • Scheduled or event-driven logging of up to 320 parameters
  • Sequence-of-events & min/max logging

Setpoints for Control and Alarms

  • Setpoint on any parameter or condition
  • 1 second or 1 cycle operation

Digital Inputs and Outputs

  • 4 optional analog inputs
  • 8 digital inputs
  • Up to 30 addition I/O points can be ordered
